The Software Agent works while the system is alive. KVM 2.0 goes below it, all in one USBridge Client.
The Software Agent runs the system while it's up. When it freezes, won't boot or the computer is off, KVM 2.0 sees the screen from power-on.
Change the boot order, overclocking or virtualization as if you were sitting at the monitor.
System Time ....... 11:16:08
BIOS Version ...... 2.04
Total Memory ...... 32768 MB
System Time ....... 11:16:08
BIOS Version ...... 2.04
Total Memory ...... 32768 MB
Ultra-compact KVM
The most compact KVM setup powered by USBridge OS. Includes a pre-flashed MicroSD card for seamless, out-of-the-box integration into your USBridge ecosystem.
Minimalist Board Edition

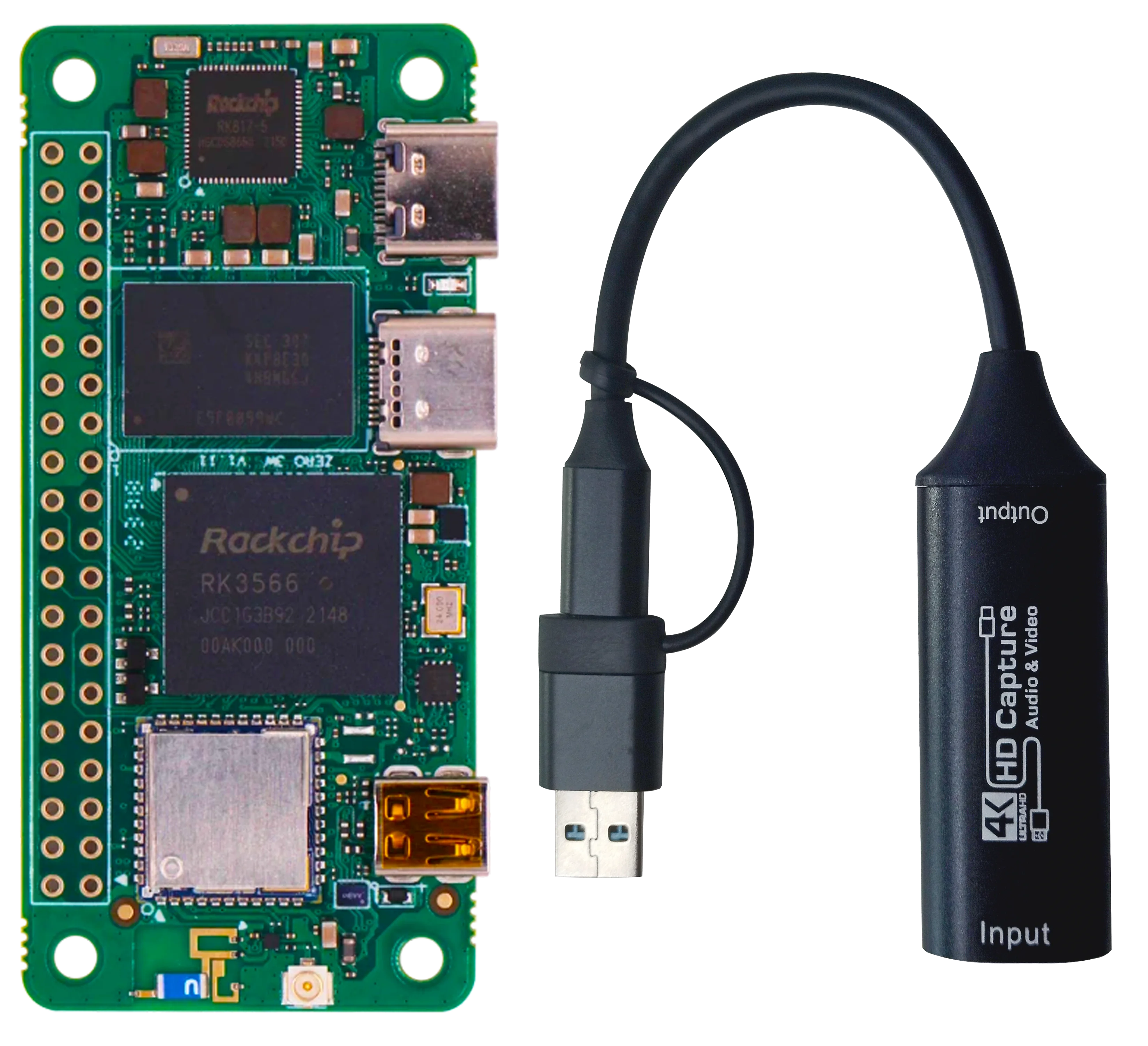

Base kit for integration. A board with a heatsink and a USB capture dongle — the right fit for rack mounting.
Complete Desktop Kit
A ready-to-use device in a stylish case. The kit includes a USB-C cable and a video capture card.
Ultimate Pro Kit + ATX
The full all-in-one kit. A KVM with an ATX control board, an interactive screen, and aluminum heatsink.
| Nano$89 | Low$99 | Standard$117 | RecommendedFull$139 | |
|---|---|---|---|---|
| Board | Sipeed NanoKVM (SG2002) | Radxa Zero 3W | Radxa Zero 3W | Radxa Zero 3W |
| Processor | 1 RISC-V core, 1 GHz | 4 Cortex-A55 cores, 1.6 GHz | 4 Cortex-A55 cores, 1.6 GHz | 4 Cortex-A55 cores, 1.6 GHz |
| Memory | 256 MB | 1 GB | 1 GB | 1 GB |
| Video | 1080p 60 FPS | 1080p 60 FPS | 1080p 60 FPS | 1080p 60 FPS |
| Internet | Ethernet port | Wi-Fi 6 | Wi-Fi 6 | Wi-Fi 6 |
| Case | Custom case | Custom case | Custom case | |
| Dimensions | 49×41×41 mm | 69×36×34 mm | 69×36×34 mm | |

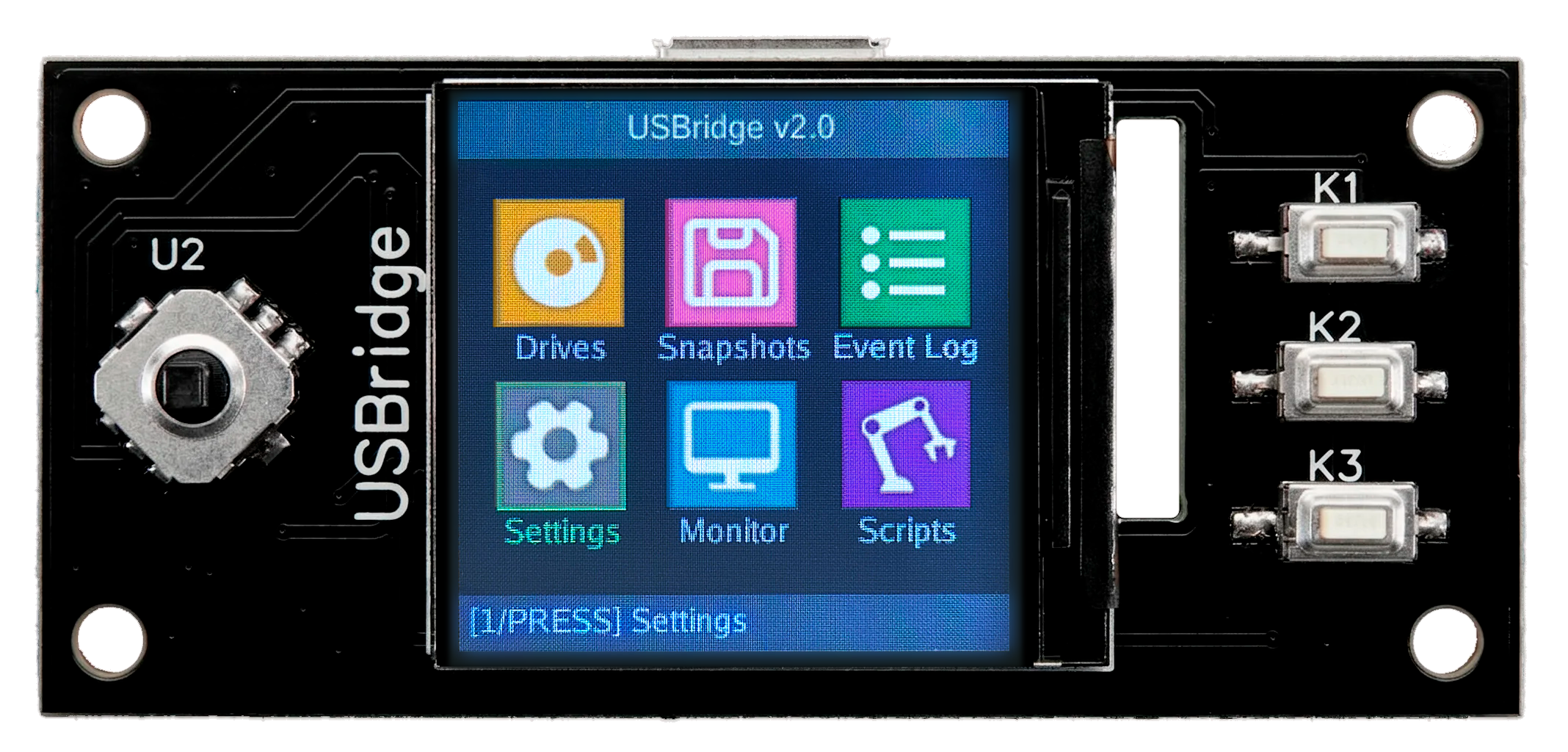

| Screen | 128×64 | 240×240 | 240×240 | |
| ATX power control | ||||
| MicroSD with KVM OS | +$5 optional | |||
| Lifetime KVM OS license |
Execute Layer 0 BIOS/UEFI control, real-time OCR text recognition, immutable Btrfs rollbacks, and autonomous AI diagnostics.
Drag the slider to compare with a generic IP-KVM
Sub-frame encoding guarantees an imperceptible delay between physical input and visual response.
High-refresh-rate remote rendering for precise cursor control and UI navigation.
Hardware-level network optimization ensures continuous frame delivery even under high bandwidth loads.
One client on every device: a computer, a phone or just a browser.
No more USB sticks: an image connects to the computer as a real USB drive.
The computer sees ordinary USB devices, with no drivers or setup.
Images and files on the microSD inside the KVM are safe from deletion and ransomware.
The KVM reads the screen on the device itself and shows the BIOS in a normal terminal.
# name: Install Proxmox VE (Terminal UI)
# desc: Fully offline/automated Proxmox VE 9.2 install via the ncurses Terminal UI installer.
ENTER = 0x28
ESC = 0x29
BACKSPACE = 0x2A
TAB = 0x2B
SPACE = 0x2C
HOME = 0x4A
PAGEUP = 0x4B
END = 0x4D
PAGEDOWN = 0x4E
RIGHT = 0x4F
LEFT = 0x50
UP = 0x52
DOWN = 0x51
ROOT_PASSWORD = "112233445566"
ADMIN_EMAIL_USER = "example"
ADMIN_EMAIL_DOMAIN = "gmail.com"
HOSTNAME = "test.usbridge.io"
IP_ADDRESS = ""
CIDR = ""
GATEWAY = ""
DNS = ""
def dump_screen(tag="SCREEN DUMP"):
print("--- %s ---" % tag)
for line in screen_text():
if line.strip() != "":
print(" | " + line)
print("--- END %s ---" % tag)
def checkpoint(name):
print("=== CHECKPOINT: %s ===" % name)
dump_screen("CHECKPOINT: " + name)
def looks_like_wrong_grub():
return screen_fuzzy_contains("gnu grub", max_errors=1) or (
screen_fuzzy_contains("advanced options for", max_errors=2)
and screen_fuzzy_contains("gnu/linux", max_errors=1)
)
def wait_grub_or_fallback(ceiling_ms=40000, poll_ms=1000, stable_count=3):
for i in range(5):
sleep(poll_ms)
if screen_fuzzy_contains(
"Terminal UI", max_errors=1
) or screen_fuzzy_contains("arrow keys", max_errors=2):
print("GRUB menu text matched directly after ~%dms" % ((i + 1) * poll_ms))
return True
if (
screen_fuzzy_contains("bios", max_errors=1)
or screen_fuzzy_contains("aptio", max_errors=1)
or screen_fuzzy_contains("setup utility", max_errors=1)
):
continue
print("Waiting for GRUB screen to settle...")
if wait_screen_settled(
timeout_ms=ceiling_ms,
poll_ms=poll_ms,
max_diff_lines=2,
stable_count=stable_count,
):
print("GRUB screen settled.")
return True
return False
def wait_for_eula_or_bail(timeout_ms=240000, poll_ms=2000):
print("Waiting for: EULA screen (EULA + I agree button)")
for i in range(timeout_ms // poll_ms):
if screen_fuzzy_contains("EULA", max_errors=1) and screen_fuzzy_contains(
"I agree", max_errors=2
):
print("OK: reached EULA screen")
return True
if screen_fuzzy_contains(
"welcome to the proxmox virtual environment", max_errors=3
) or screen_match("[a-z0-9._-]+ login:"):
print("ABORT: booted into an ALREADY-INSTALLED system.")
dump_screen("ALREADY INSTALLED")
return False
sleep(poll_ms)
dump_screen("EULA TIMEOUT")
return False
def still_on_eula():
return screen_fuzzy_contains("EULA", max_errors=1) and screen_fuzzy_contains(
"I agree", max_errors=2
)
def accept_eula(max_attempts=4):
for attempt in range(max_attempts):
sleep(1000)
if attempt == 0:
key_press(ENTER)
elif attempt == 1:
key_press(RIGHT)
sleep(3000)
key_press(ENTER)
else:
key_press(TAB)
sleep(3000)
key_press(ENTER)
sleep(2000)
if not still_on_eula():
print("Accepted EULA (attempt %d)" % (attempt + 1))
return True
print("EULA still on screen after attempt %d, retrying..." % (attempt + 1))
return False
def wait_and_log(text, timeout_ms, label, max_errors=0):
print("Waiting for: %s (%s)" % (label, text))
ok = wait_text(text, timeout_ms=timeout_ms, max_errors=max_errors)
if ok:
print("OK: reached " + label)
else:
dump_screen("TIMEOUT WAITING FOR: " + label)
return ok
def still_looks_like_bios(attempts=12, delay_ms=1700):
for attempt in range(attempts):
in_bios_interactive = screen_fuzzy_contains(
"boot override", max_errors=2
) or screen_fuzzy_contains("F10: Save", max_errors=1)
looks_like_grub = screen_fuzzy_contains(
"Terminal UI", max_errors=1
) or screen_fuzzy_contains("arrow keys", max_errors=2)
if looks_like_grub:
return False
if in_bios_interactive:
return True
if attempt < attempts - 1:
sleep(delay_ms)
return False
def clear_field_end():
key_press(END)
sleep(200)
for i in range(40):
key_press(BACKSPACE)
sleep(50)
sleep(200)
def clean_ocr_text(text):
t = text.lower()
for ch in [".", ",", "'", "`", "~", "^", "_", "|", " ", "-", ":", "(", ")", "<", ">"]:
t = t.replace(ch, "")
return t
def keyboard_line_is_us():
for line in screen_text():
cl = clean_ocr_text(line)
if "keyboard" in cl or "layout" in cl:
if "usenglish" in cl or "english" in cl or "u.s." in cl:
return True
return False
def select_us_keyboard_layout():
print("Selecting U.S. keyboard layout...")
# 1. Dismiss any open popups
key_press(ESC)
sleep(300)
key_press(ESC)
sleep(500)
# 2. Normalize to <Next>: drop to bottom button row and move full right
for _ in range(4): key_press(DOWN); sleep(150)
for _ in range(3): key_press(RIGHT); sleep(150)
sleep(500)
# 3. Exactly ONE Up reaches Keyboard layout field
print("Navigating UP x1 from <Next> to Keyboard Layout field...")
key_press(UP)
sleep(800)
# 4. Open dropdown menu
key_press(ENTER)
sleep(1200)
# 5. Jump to the bottom of the list using PageDown
print("Scrolling to bottom of layout list via PageDown x4...")
for _ in range(4):
key_press(PAGEDOWN)
sleep(250)
sleep(600)
# 6. Move UP x1 from 'United Kingdom' (bottom) to 'U.S. English' (second to last)
print("Moving UP x1 to select U.S. English...")
key_press(UP)
sleep(600)
# 7. Confirm selection
key_press(ENTER)
sleep(1200)
if keyboard_line_is_us():
print("Successfully selected U.S. English via PageDown+Up")
dump_screen("KEYBOARD VERIFIED US")
return True
# 8. Fallback: cycle with RIGHT arrow if popup was not active
print("Popup PageDown missed, cycling field with RIGHT arrow...")
for step in range(30):
if keyboard_line_is_us():
print("Successfully found U.S. English after %d cycles" % step)
dump_screen("KEYBOARD VERIFIED US")
return True
key_press(RIGHT)
sleep(300)
dump_screen("KEYBOARD SELECTION FAILED")
return False
def type_email():
type_text(ADMIN_EMAIL_USER + "@" + ADMIN_EMAIL_DOMAIN)
def configure_network_fields():
print("Configuring network fields...")
dump_screen("NETWORK SCREEN ARRIVAL")
for _ in range(5):
key_press(UP)
sleep(300)
clear_field_end()
type_text(HOSTNAME)
sleep(500)
print("Hostname set to " + HOSTNAME)
if IP_ADDRESS != "":
key_press(TAB)
sleep(300)
clear_field_end()
type_text(IP_ADDRESS)
sleep(500)
key_press(UP)
sleep(300)
if CIDR != "":
key_press(TAB)
sleep(200)
key_press(TAB)
sleep(200)
clear_field_end()
type_text(CIDR)
sleep(500)
key_press(UP)
sleep(200)
key_press(UP)
sleep(300)
if GATEWAY != "":
for _ in range(3):
key_press(TAB)
sleep(200)
clear_field_end()
type_text(GATEWAY)
sleep(500)
for _ in range(3):
key_press(UP)
sleep(200)
if DNS != "":
for _ in range(4):
key_press(TAB)
sleep(200)
clear_field_end()
type_text(DNS)
sleep(500)
for _ in range(4):
key_press(UP)
sleep(200)
def landmark_seen(text, max_errors):
clean_needle = clean_ocr_text(text)
for line in screen_text():
if fuzzy_match(clean_needle, clean_ocr_text(line), max_errors):
return True
return False
def abort_dialog_seen():
return screen_fuzzy_contains("Abort installation", max_errors=2) or screen_fuzzy_contains("abort the installation", max_errors=2)
def install_failed_seen():
for line in screen_text():
clean = clean_ocr_text(line)
if "failed" in clean and ("install" in clean or "package" in clean or "error" in clean or "extract" in clean or "partition" in clean or "create" in clean):
return True
return False
def install_progress_visible():
return (
screen_fuzzy_contains("extracting", max_errors=1)
or screen_fuzzy_contains("create LVs", max_errors=1)
or screen_fuzzy_contains("installing", max_errors=1)
or screen_fuzzy_contains("creating root filesystem", max_errors=3)
or screen_fuzzy_contains("cleanup root-disks", max_errors=2)
or screen_fuzzy_contains("unmounting", max_errors=1)
or screen_fuzzy_contains("resizing", max_errors=1)
or screen_fuzzy_contains("copying files", max_errors=2)
or screen_fuzzy_contains("running post", max_errors=2)
or screen_match("%")
or screen_match("[0-9]{1,3} *[%g]")
)
def advance_from_network_screen():
print("Advancing from Network configuration to Summary...")
for attempt in range(3):
if abort_dialog_seen():
key_press(ESC)
sleep(400)
key_press(ENTER)
sleep(500)
print("Navigating DOWN x6 from Hostname to button row...")
for _ in range(6):
key_press(DOWN)
sleep(200)
print("Moving RIGHT x2 to focus <Next>...")
for _ in range(2):
key_press(RIGHT)
sleep(200)
key_press(ENTER)
sleep(3000)
if landmark_seen("Summary", 1) or install_progress_visible():
print("Successfully advanced to Summary/Install screen")
dump_screen("SUMMARY REACHED")
return True
print("Screen did not advance on attempt %d, recovering..." % (attempt + 1))
dump_screen("NETWORK ADVANCE RETRY")
if landmark_seen("Root password", 1):
key_press(ENTER)
sleep(2000)
for _ in range(5):
key_press(UP)
sleep(200)
return False
def main():
print("=== Proxmox VE Terminal UI unattended install ===")
print("Rebuilding USB gadget (keyboard, mouse, install ISO)...")
reconnect_gadget(keyboard=True, mouse=True, rndis=False, sources=["proxmox-ve_9.2-1.iso"])
sleep(5000)
run_script("boot_override_cd.star")
sleep(500)
if still_looks_like_bios():
print("ABORT: still in interactive BIOS Setup Utility after boot_override_cd.star")
dump_screen("STILL IN BIOS")
return
checkpoint("BIOS boot-override -> booting ISO")
wait_grub_or_fallback()
if looks_like_wrong_grub():
print("ABORT: detected installed system GRUB menu instead of ISO installer")
dump_screen("WRONG GRUB")
return
key_press(DOWN)
sleep(300)
key_press(ENTER)
print("Selected: Install Proxmox VE (Terminal UI)")
checkpoint("grub -> installer boot")
if not wait_for_eula_or_bail(240000):
print("ABORT: EULA screen never appeared")
return
if not accept_eula():
print("ABORT: could not accept EULA")
return
checkpoint("EULA accepted")
harddisk_seen = False
country_seen_early = False
print("Waiting for target harddisk screen (or Country screen if skipped)...")
for i in range(150):
if screen_fuzzy_contains("harddisk", max_errors=1):
harddisk_seen = True
break
if screen_fuzzy_contains("Country", max_errors=1) and screen_fuzzy_contains(
"Timezone", max_errors=1
):
country_seen_early = True
break
sleep(1000)
if not harddisk_seen and not country_seen_early:
print("ABORT: target harddisk screen never appeared")
dump_screen("NO HARDDISK SCREEN")
return
if harddisk_seen:
dump_screen("TARGET DISK SCREEN")
sleep(3000)
key_press(ENTER)
print("Accepted default target disk")
checkpoint("target disk accepted")
else:
checkpoint("target disk accepted (implicitly skipped)")
print("Waiting for: country/timezone screen (Country + Timezone)")
country_seen = False
for i in range(15):
if screen_fuzzy_contains("Country", max_errors=1) and screen_fuzzy_contains(
"Timezone", max_errors=1
):
country_seen = True
break
sleep(1000)
if not country_seen:
print("ABORT: country screen never appeared")
dump_screen("NO COUNTRY SCREEN")
return
keyboard_layout_seen = False
for i in range(10):
if screen_fuzzy_contains("keyboard layout", max_errors=2):
keyboard_layout_seen = True
break
sleep(300)
if not keyboard_layout_seen:
print("ABORT: 'Keyboard layout' field never appeared")
dump_screen("NO KEYBOARD FIELD")
return
if not select_us_keyboard_layout():
print("ABORT: could not confirm U.S. keyboard layout")
return
for _ in range(4): key_press(DOWN); sleep(150)
for _ in range(3): key_press(RIGHT); sleep(150)
sleep(500)
key_press(ENTER)
print("Accepted country/timezone, keyboard layout confirmed U.S.")
checkpoint("country/timezone/keyboard accepted")
if not wait_and_log("Root password", 15000, "password screen", max_errors=1):
print("ABORT: password screen never appeared")
return
sleep(1500)
type_text(ROOT_PASSWORD)
sleep(200)
key_press(TAB)
sleep(300)
type_text(ROOT_PASSWORD)
sleep(200)
key_press(TAB)
sleep(300)
clear_field_end()
type_email()
sleep(300)
print("Filled password + email")
checkpoint("password/email filled")
reached_network = False
for attempt in range(6):
for i in range(3):
key_press(TAB)
sleep(400)
key_press(ENTER)
sleep(3000)
if (
landmark_seen("Management", 3)
or landmark_seen("Hostname", 2)
or landmark_seen("Gateway", 2)
or landmark_seen("interface", 2)
):
reached_network = True
break
if abort_dialog_seen():
key_press(ENTER)
sleep(800)
continue
if landmark_seen("Timezone", 2) or landmark_seen("Country", 2):
key_press(ENTER)
sleep(1200)
continue
if not reached_network:
print("ABORT: could not advance past password screen")
dump_screen("PASSWORD SCREEN STUCK")
return
checkpoint("password screen -> network config")
sleep(1500)
configure_network_fields()
if not advance_from_network_screen():
print("ABORT: could not advance past network config screen")
dump_screen("NETWORK SCREEN STUCK")
return
checkpoint("network config -> summary")
if install_progress_visible() or not screen_fuzzy_contains(
"Previous", max_errors=1
):
print("Install already in progress — skipping Summary keystrokes")
else:
sleep(500)
key_press(RIGHT)
sleep(300)
key_press(RIGHT)
sleep(300)
key_press(ENTER)
sleep(3000)
if (
screen_fuzzy_contains("continue", max_errors=1)
or screen_fuzzy_contains("erase", max_errors=1)
or screen_fuzzy_contains("wipe", max_errors=1)
or screen_fuzzy_contains("confirm", max_errors=1)
):
print("Confirm-install dialog shown — accepting")
key_press(ENTER)
sleep(1000)
already_booted = False
ok = False
for i in range(900000 // 1000):
if screen_fuzzy_contains("Installation successful", max_errors=1):
ok = True
break
if install_failed_seen():
print("ABORT: Installation failure detected on screen!")
dump_screen("INSTALL FAILURE DETECTED")
break
if screen_match("[a-z0-9._-]+ login:"):
already_booted = True
break
if abort_dialog_seen():
key_press(ENTER)
sleep(1000)
if already_booted:
checkpoint("summary -> install (already booted)")
print("Install finished and rebooted.")
elif ok:
checkpoint("summary -> install complete")
print("Install reported success — ejecting ISO")
eject_media()
sleep(1000)
key_press(ENTER)
else:
print("ABORT/UNKNOWN: install did not report success within 15 min")
dump_screen("INSTALL TIMEOUT")
return
if already_booted or wait_and_log(
"login:", 180000, "Proxmox login prompt", max_errors=1
):
checkpoint("install -> login prompt (final)")
print("=== SUCCESS: Proxmox VE installed and booted to login prompt ===")
dump_screen("FINAL LOGIN PROMPT")
else:
print("=== UNVERIFIED: install finished but no login prompt seen yet ===")
dump_screen("UNVERIFIED FINAL STATE")
main()Scripts and AI see the screen as text, so BIOS chores can be automated.
Power on, power off and hard reset, even when the computer is completely frozen.
Compared with the most popular IP KVMs, using the makers' official sites.
| JetKVM Mini | USBridge KVM 2.0 | PiKVM V4 Mini | TinyPilot Voyager 3 | |
|---|---|---|---|---|
| Price | $39 | from $99 | from $252 | $399 |
| Video | 1080p 30 / 720p 60 | 1080p 60 FPS | 1920×1200, 60 FPS | 1920×1200, 60 FPS |
| Latency | not stated | ~45 ms | not stated | 80–100 ms |
| Network | 100 Mbps Ethernet or Wi-Fi | Wi-Fi 6, Ethernet via a USB hub | Ethernet | Gigabit Ethernet |
| ATX power control | ||||
| Virtual drive (ISO) | ||||
| Screen on the device | ||||
| Snapshots with rollback | ||||
| BIOS text for AI agents (OCR, MCP) | Paid license |
Data from jetkvm.com, pikvm.org and tinypilotkvm.com, November 2026. PiKVM price is from resellers, excluding VAT. A dash means the maker's site doesn't list the feature. On USBridge, power control comes with the Full kit and the screen with Standard and Full. Prices can change and vary by region, so check the current price on each maker's official site.
Turn standard single-board computers into an IP KVM: enterprise-grade out-of-band management appliances. Gain full BIOS control, immutable Btrfs snapshots, and ultra-low latency streaming through native USBridge Client integration.
10.55.0.1, over the USB cable. Plug the board's USB cable into your computer: the computer gets a USB network adapter (its own internet is untouched) and the KVM is 10.55.0.1 on it. Open http://10.55.0.1 for the setup page: QR code, connect link, key, Moonlight PIN and network settings. On the Sipeed NanoKVM it's always there; on the other boards while the KVM isn't set up yet or has no network address.
On your network (Ethernet, Wi-Fi): the address your router gives it by DHCP, there's no fixed default. The setup page shows it at the top, and so does the front-panel screen on boards with one.
No app at hand? The setup page also opens the web client in the browser. The app is recommended: best video and every feature.
Full setup guide →HDMI cable from the computer to Nano.
On-device Status Display
ATX Power Control
HDMI-to-USB Capture
Software remote access, the USBridge agent included, runs inside the operating system and drops out when it freezes, fails to boot or the computer is off. A KVM connects to the computer's HDMI and USB and sees the screen from power-on: BIOS, the boot loader, a blue screen. You can reinstall the OS with it and, with the ATX board, turn on a computer that's off. The agent and the KVM open in the same USBridge Client.
No. The computer sees a regular monitor, keyboard, mouse and USB drive. USBridge Client is installed only on the device you control it from.
There's no built-in port: the board has Wi-Fi 6. For a wired link you need a USB hub with an Ethernet port: it goes into the USB-C capture port, and the HDMI dongle plugs into the hub. The hub isn't included and almost any one works: the KVM finds the network on its own, with no drivers. A wired link is also needed for bridge mode, when the computer needs its own IP on your network over the USB network.
Low suits building the KVM into your own case or rack. Standard is a ready desktop device with a screen. Full adds the ATX board: choose it if you need to turn the computer on, off and restart it remotely. An HDMI cable isn't included in the kits; any standard one works.
No. The KVM OS license is included in the price of the device and never expires. The paid $19 license is only for installing USBridge firmware on your own board.
Any with an HDMI output and a USB port: desktops, mini PCs, servers and laptops. The operating system doesn't matter: the KVM works at the hardware level, BIOS and UEFI included.
KVM 2.0 is going through CE certification for Europe now. We'll publish the certificate on this page as soon as we have it.
The cart shows shipping for your country before you pay. Within 14 days of delivery you can return the device under the EU right of withdrawal: write to kvm@usbridge.io. If the device is faulty, we pay the return shipping.
Yes. USBridge is the first hardware Moonlight streamer. Every supported device, the ready KVM 2.0 or a flashed Radxa Zero 3W, Radxa Cubie A7Z or Sipeed NanoKVM, works as a hardware streamer: 1080p at 60 FPS without lag, with audio, Sunshine and Moonlight compatible. The stock Moonlight client on a PC, Mac, phone, tablet or TV connects to it, and the source, a PC or a game console, needs no software.
Radxa Zero 3W, Radxa Cubie A7Z and the Sipeed NanoKVM (SG2002). A ready KVM 2.0 is available from $99 (board, heatsink and HDMI capture) and $139 as a full kit with screen, case and ATX power control; prices exclude tax and shipping.
We'll write about new devices and firmware updates.
By subscribing you accept the privacy policy. You can unsubscribe at any time: write to kvm@usbridge.io.
Minimalist DIY kit for custom builds. Includes all core hardware and a 100% free, full-featured KVM OS license.
Complete plug-and-play desktop kit in a custom case with an interactive display and pre-flashed OS.
Need to power on and reset the PC remotely? The ATX board comes with the Full edition.
Pre-assembled, flashed, and tested hardware appliance ready for immediate deployment.
Universal low-latency HDMI video capture adapter for high-performance KVM video streaming.
Standard UVC plug-and-play capture dongle tested and verified for seamless low-latency operation with USBridge KVM firmware.
Interactive 240x240 LCD display module for real-time status monitoring and quick server diagnostics.
External hardware expansion board for complete remote ATX power management of the target PC.
Screen Module Required! This ATX board routes its power and control signals directly through the Screen Module. It will not function as a standalone accessory without the Screen Module installed on your board.
Minimalist ultra-compact KVM appliance pre-flashed with USBridge OS. Ready out of the box.
