BIOS-in-Terminal
BIOS Interface via Standard Terminal (SSH)
The BIOS-in-Terminal (BIOS-to-Text) technology processes raw hardware video output into a live, interactive text stream.
This architecture allows administrators to navigate pre-OS environments and configure server firmware directly through a standard SSH session, eliminating the bandwidth overhead of traditional UVC video streaming.
Architectural Advantages
The BIOS-to-Text engine resolves critical bottlenecks associated with remote pre-OS operations.
- Ultra-Low Bandwidth: Text streaming requires a fraction of the bandwidth consumed by video, ensuring reliable out-of-band management over unstable cellular (3G/4G) or high-latency satellite links.
- Machine-Readable Output: Firmware menus are dynamically parsed into structured text, allowing automation scripts to reliably identify and interact with specific strings (e.g., "Secure Boot").
- Universal Pre-OS Compatibility: Operates on any standard target hardware before OS initialization. Requires no Baseboard Management Controller (IPMI/iLO), proprietary host agents, or Serial-over-LAN (SoL) configurations.
Operational Capabilities
Connecting to the appliance via SSH provisions a fully interactive terminal session, rather than a static log dump.
| Capability | Technical Execution |
|---|---|
| Native Navigation | Standard keystrokes (Arrow keys, Enter, Esc) are captured and accurately injected into the target host via the hardware HID emulation layer. |
| Direct Text Extraction | Operators can highlight, copy, and export serial numbers, MAC addresses, or hexadecimal error codes directly from the local terminal window. |
| Script-Driven Automation | Facilitates the execution of Expect or Python scripts to programmatically monitor the screen state before automatically injecting keystrokes. |
Quick Setup Flow
- Physical Connection: Plug the HDMI capture dongle into the target machine and route the USB output to the USBridge Host port. Ensure the appliance is connected to the local network.

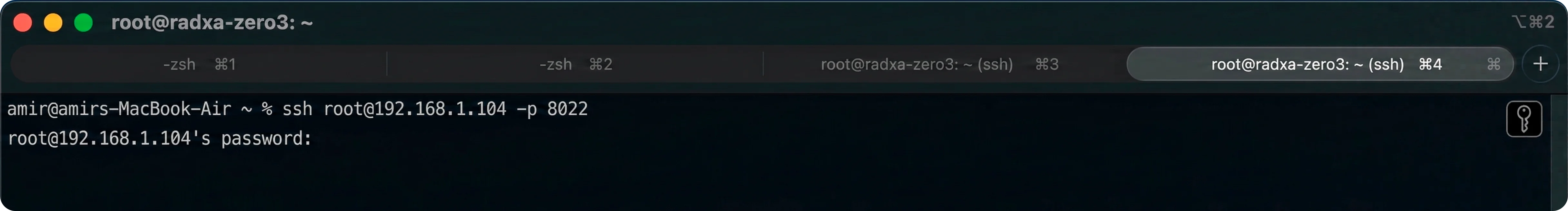

- SSH Execution: Open a terminal on the local workstation. Obtain the assigned IP address and access credentials from the appliance's built-in LCD screen, then initiate the SSH connection.
- Interactive Control: Once authenticated, the terminal will render the target's BIOS interface as text, ready for direct keyboard navigation and clipboard operations.
